Fuel Station Composite Manhole Covers — D400 Series

Product Range

Fuel Station Cover Series

All four models are D400-rated and designed for direct installation in petroleum retail forecourt environments. Select a model to view details.

Square

[ Replace with product photo ]

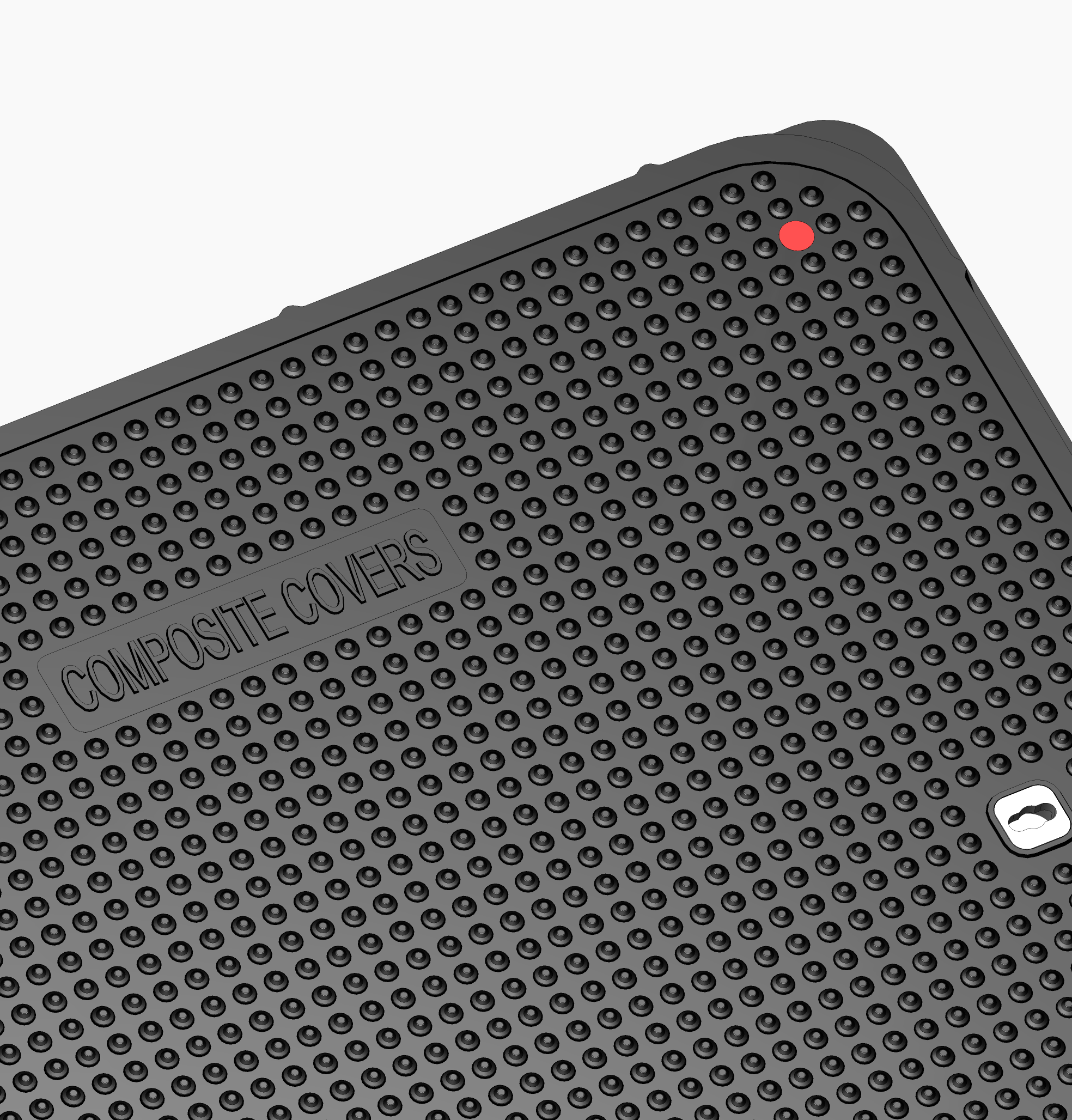

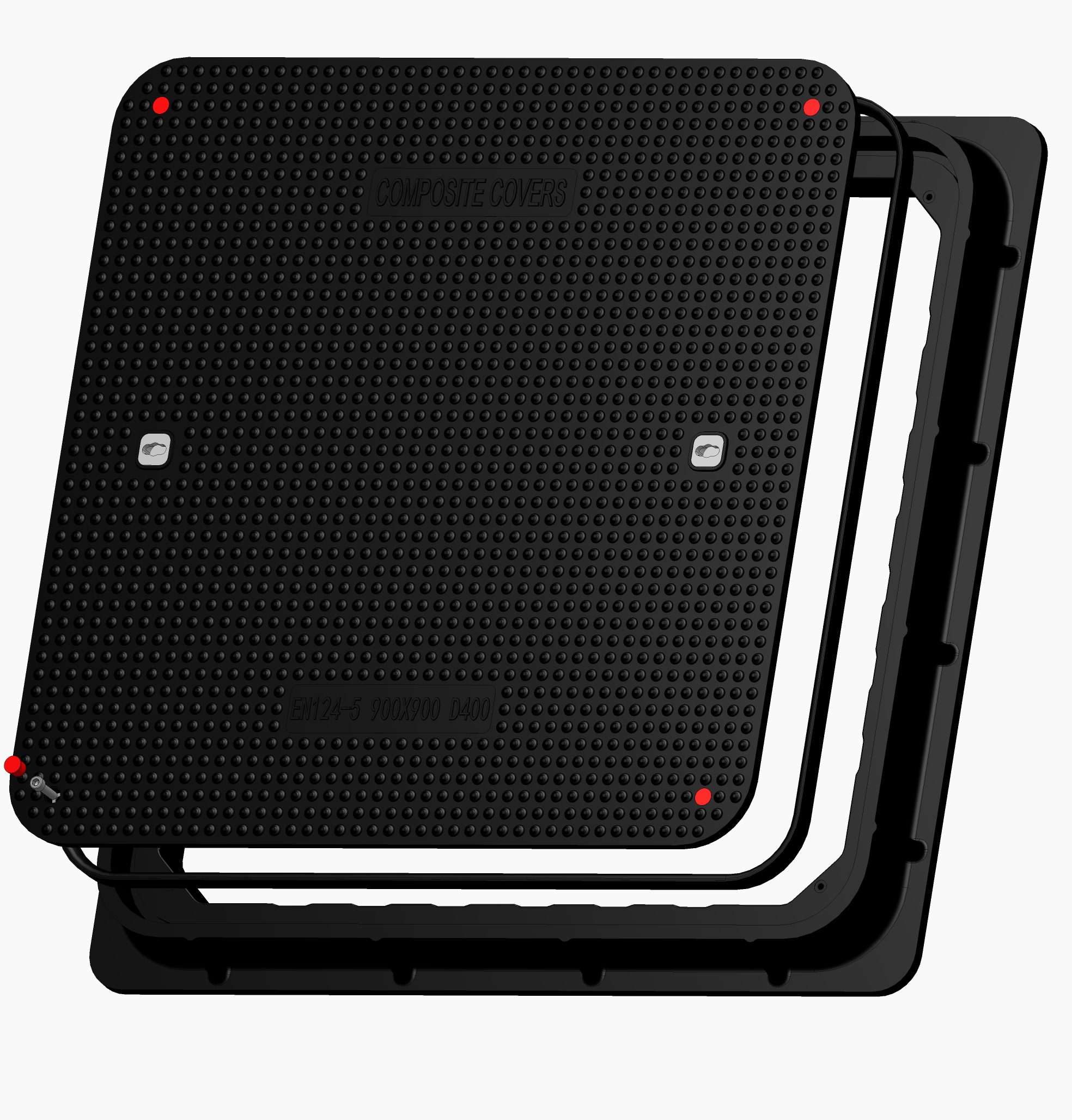

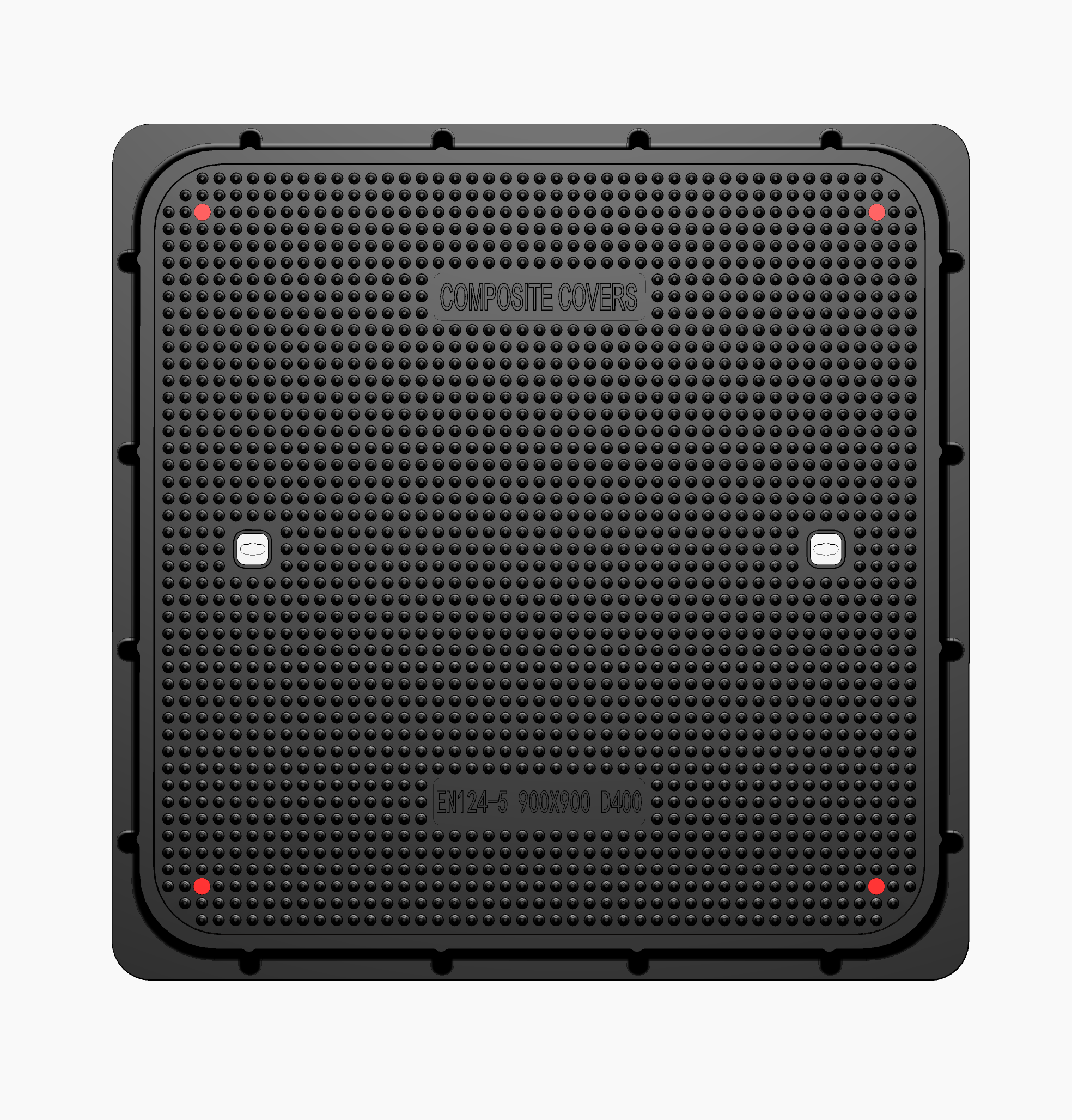

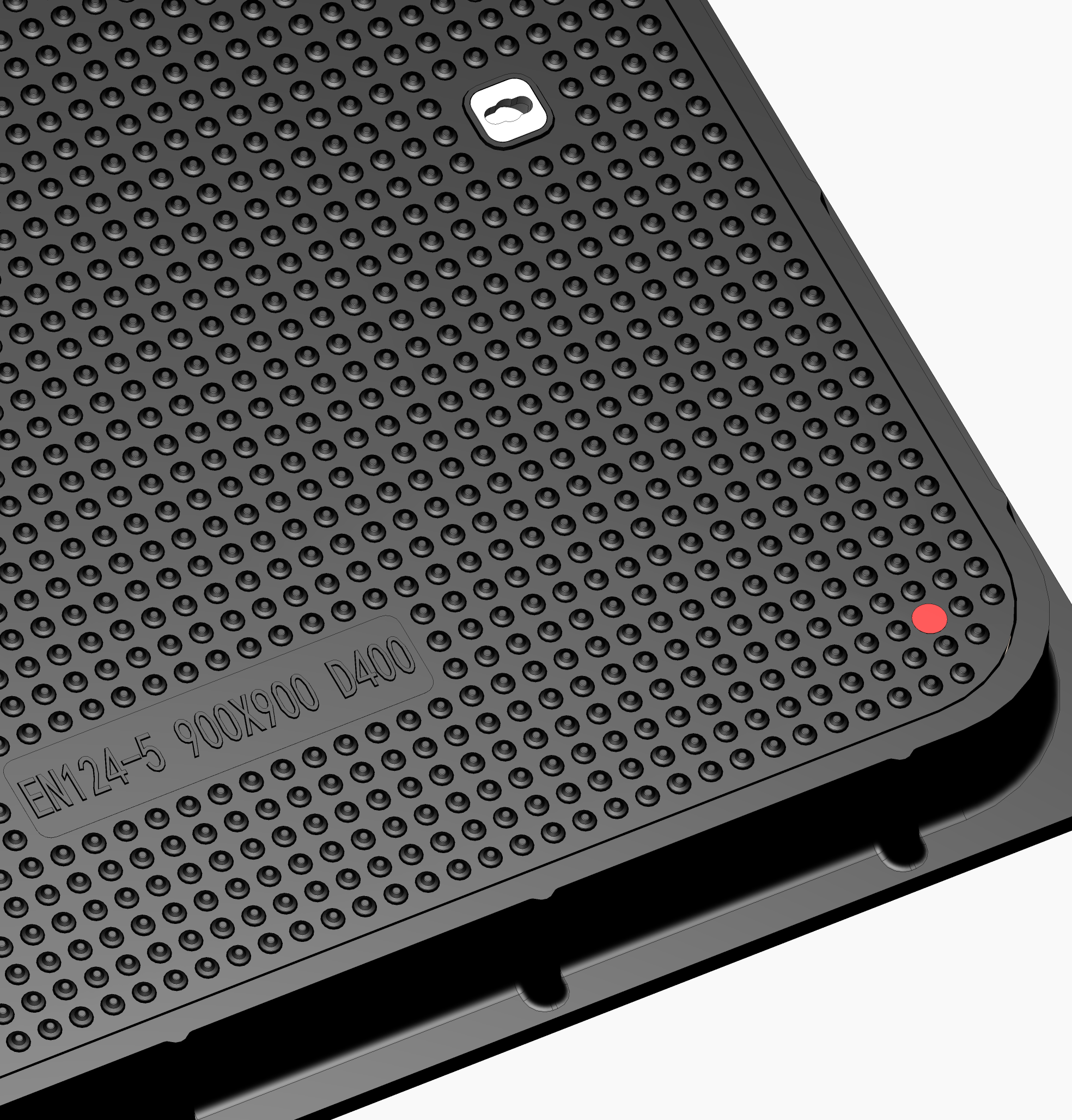

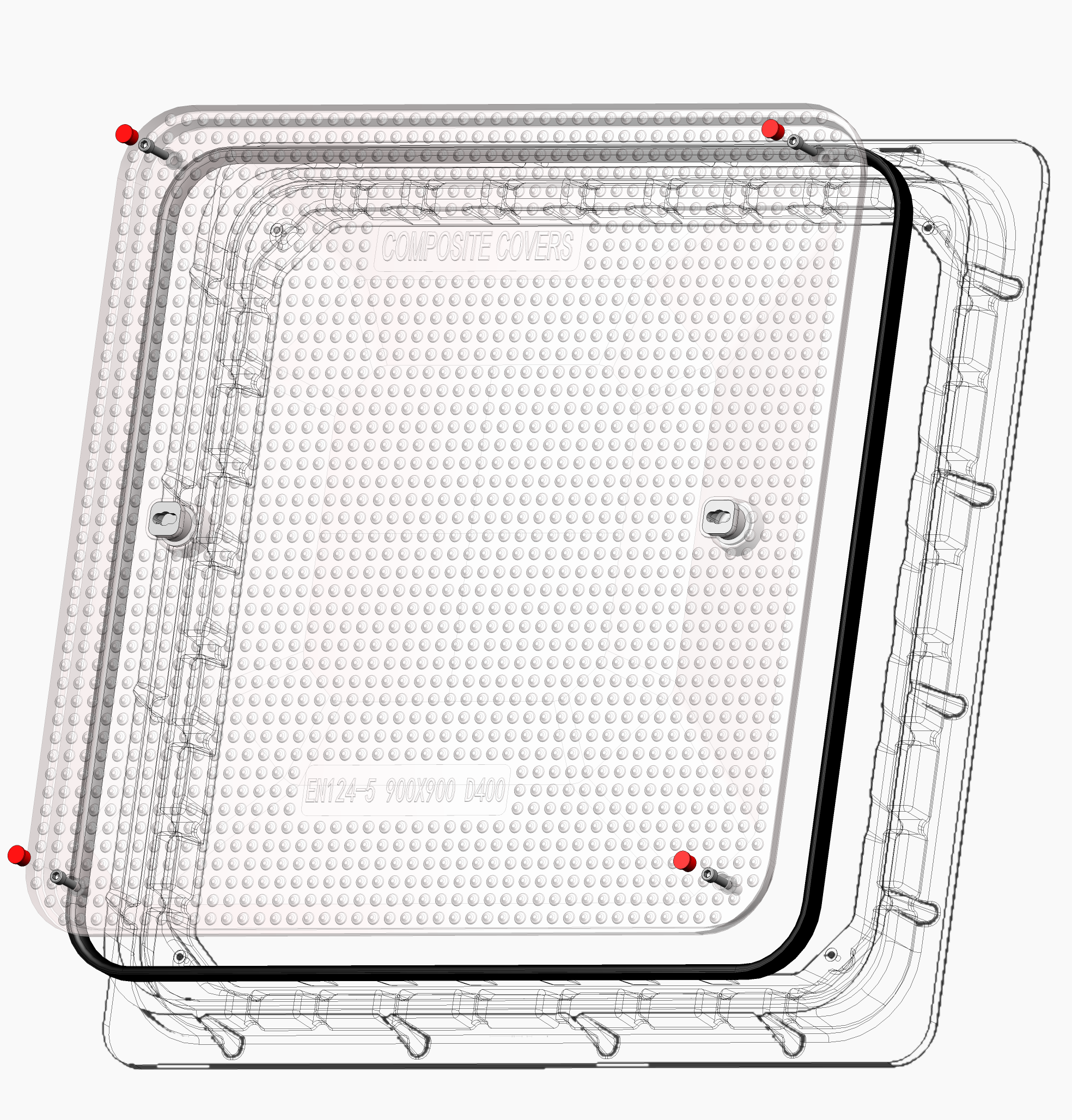

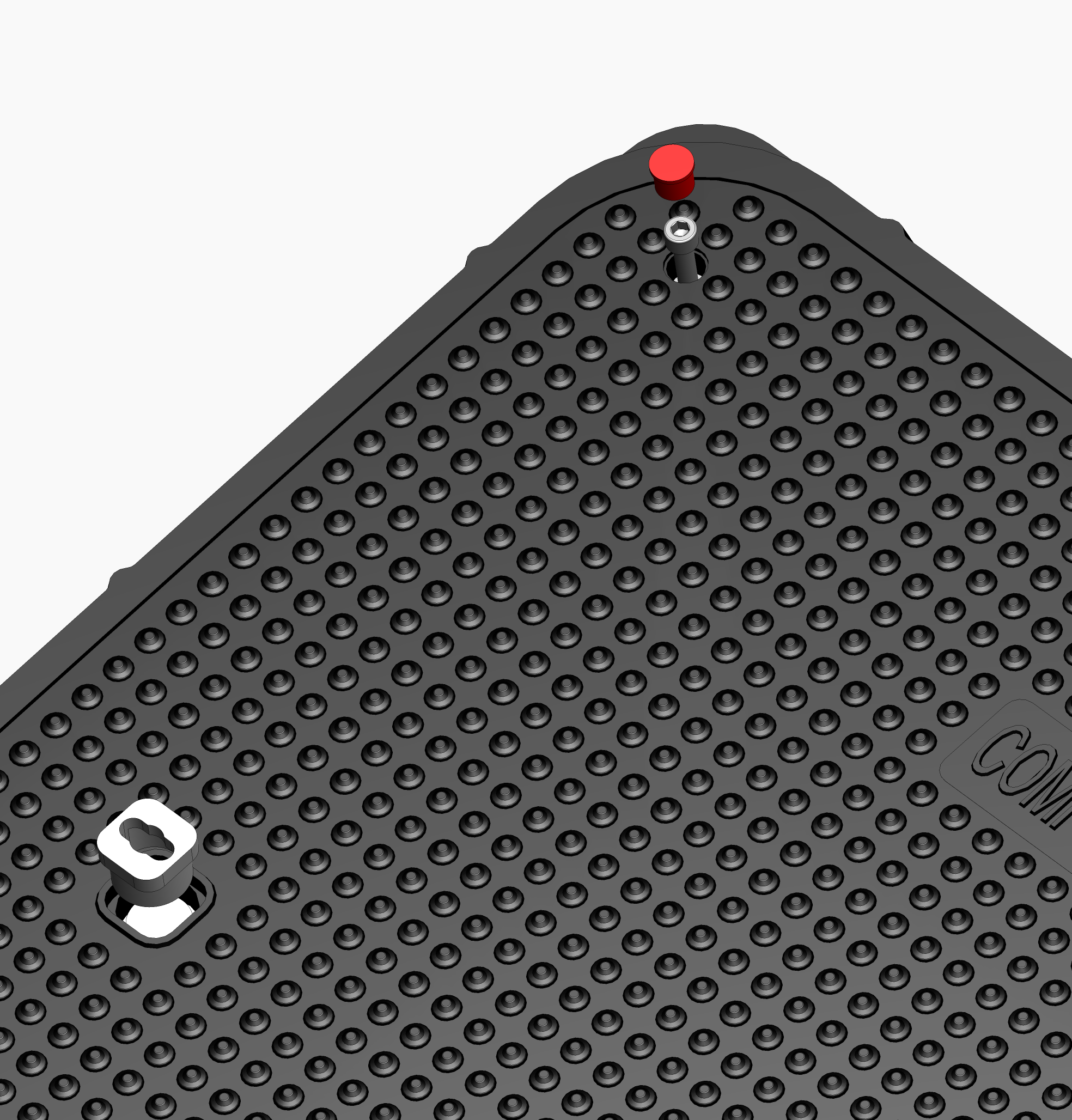

900×900mm D400Square Sump Cover

The industry-standard access cover for fuel containment sumps. Watertight IP68 seal prevents surface water and fuel ingress. Available with or without inspection hole and locking mechanism.

900×900

Dimensions (mm)

D400

Load Class

IP68

Watertight

▶
IP68 watertight perimeter seal — Prevents fuel, water, and chemical ingress into sumps
▶
Non-conductive SMC material — Zero spark risk in fuel vapour environments
▶
Optional inspection hole — 100mm central port for access without full removal
▶
Optional locking mechanism — T-bar or flush lock for unmanned station security
▶
Chemical resistant EPDM seal — Resistant to fuel, oil, and forecourt cleaning agents

Request Quote → Full Specs ↓

Round

[ Replace with product photo ]

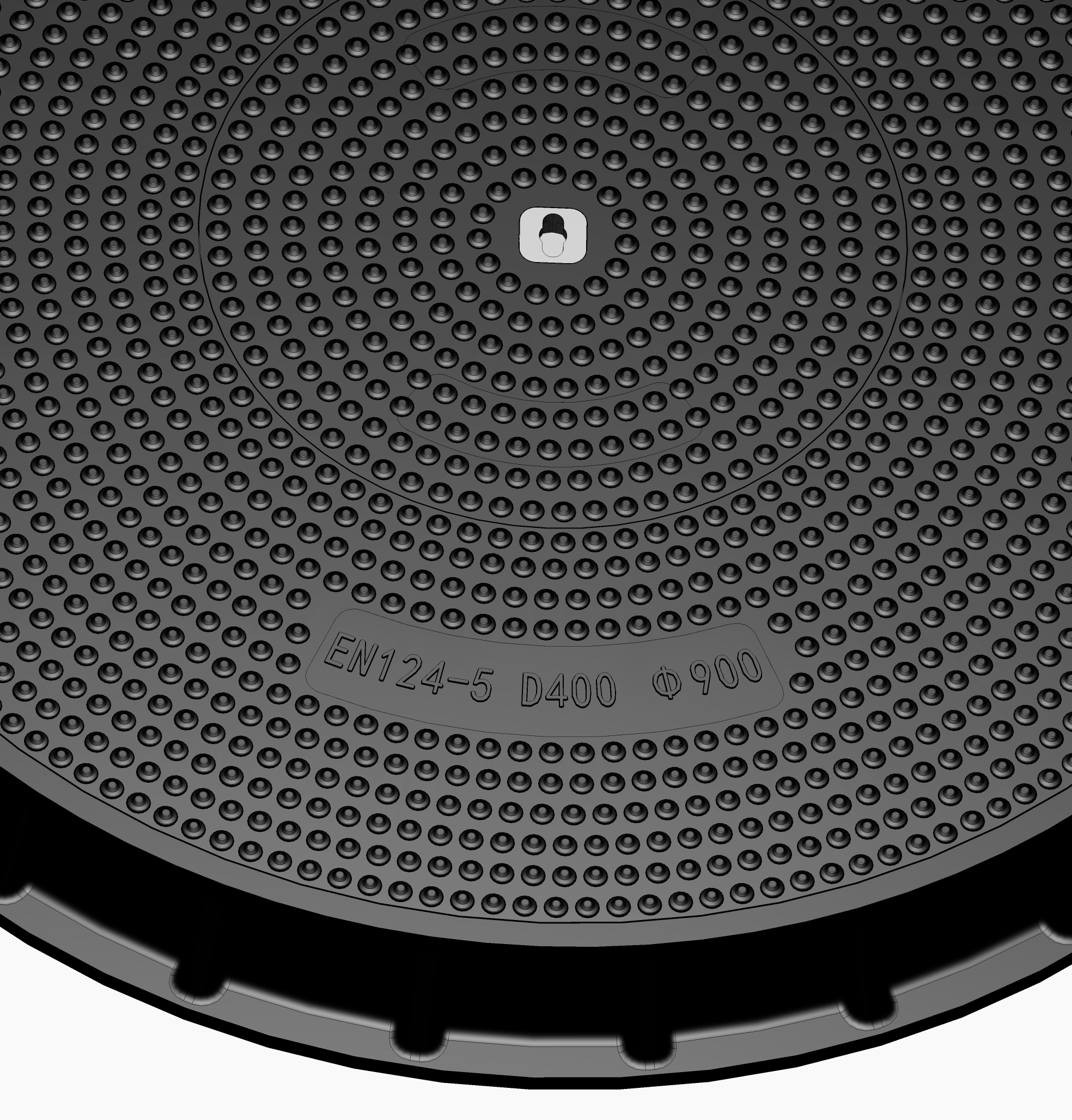

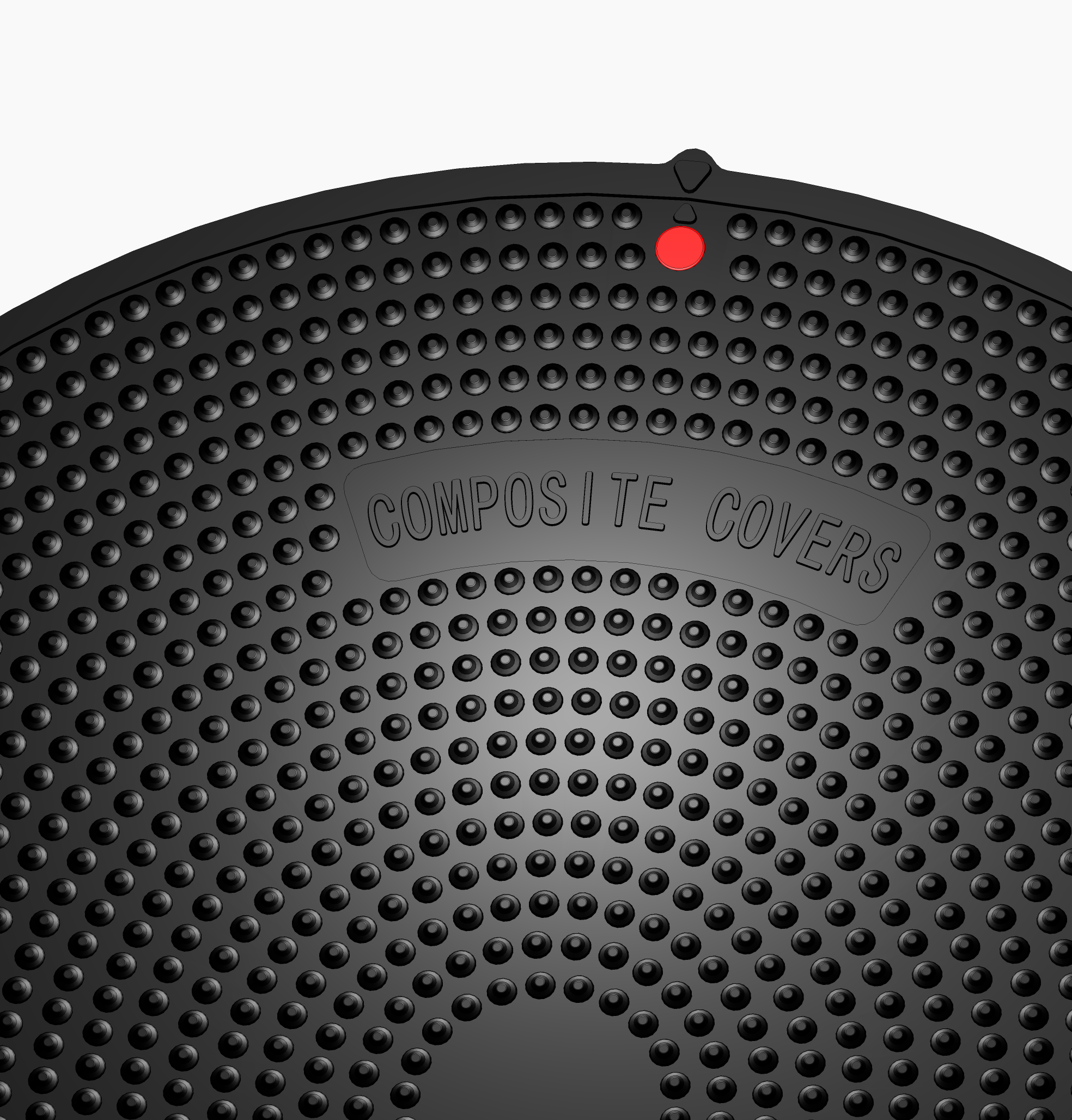

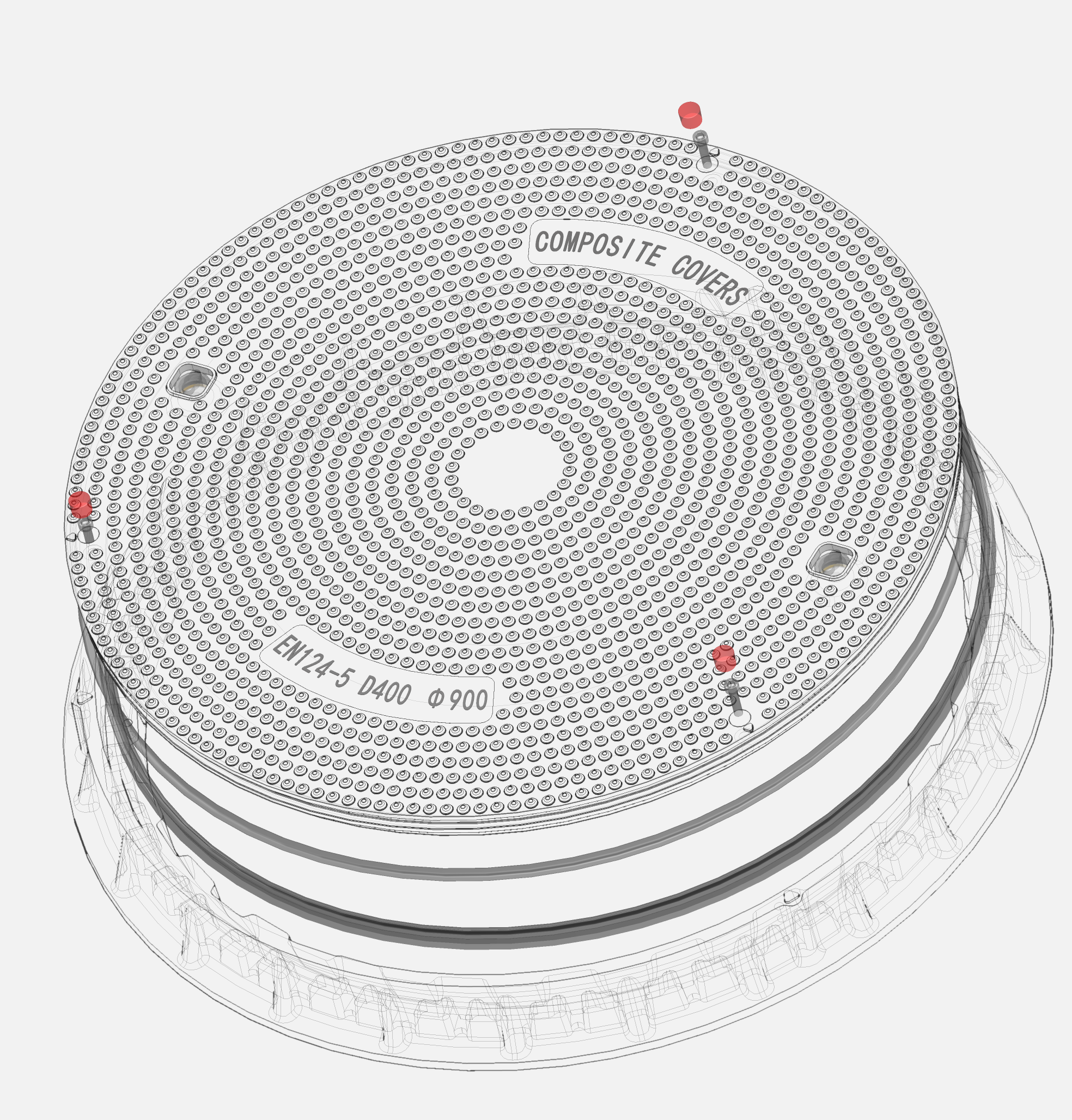

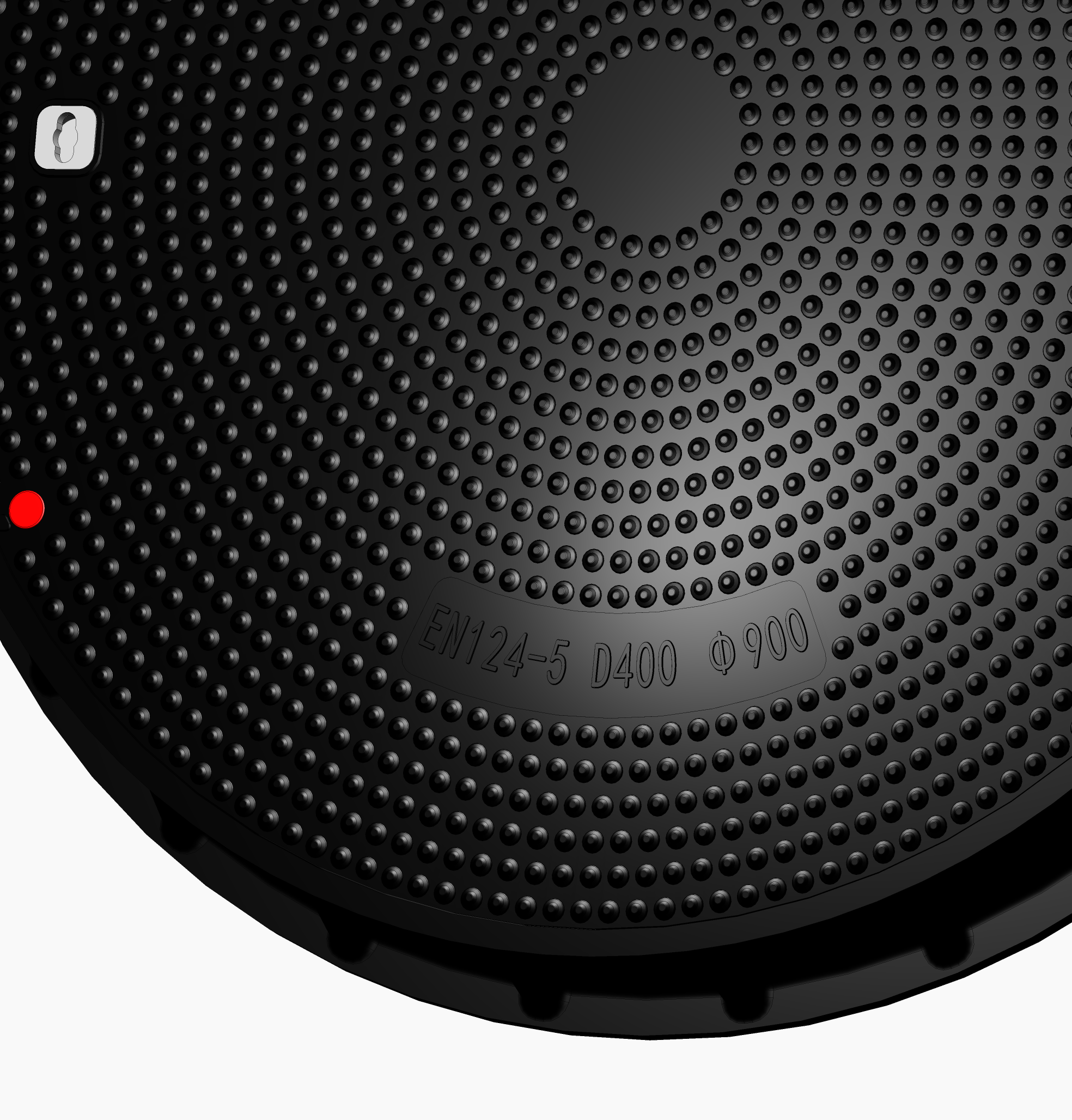

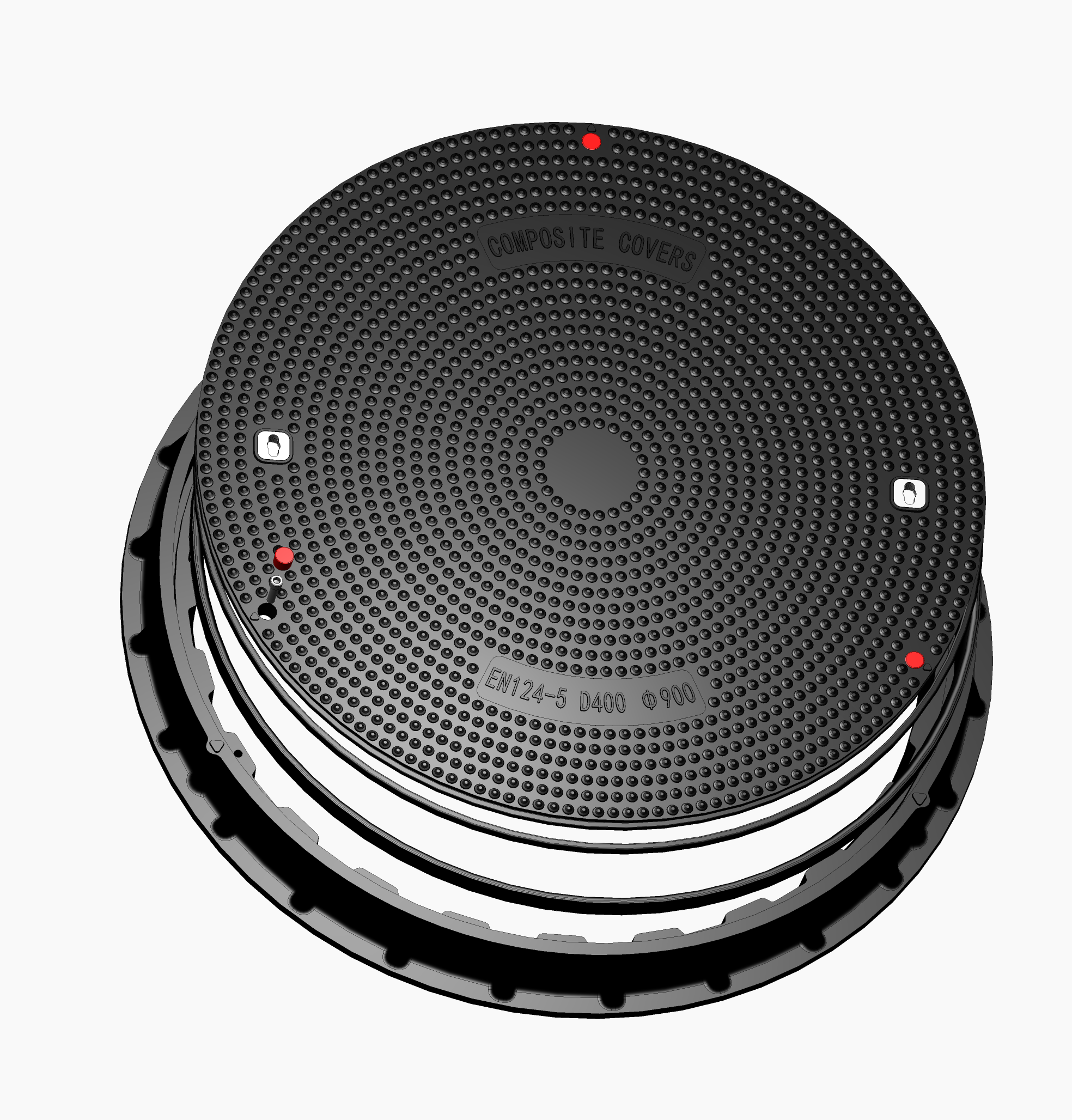

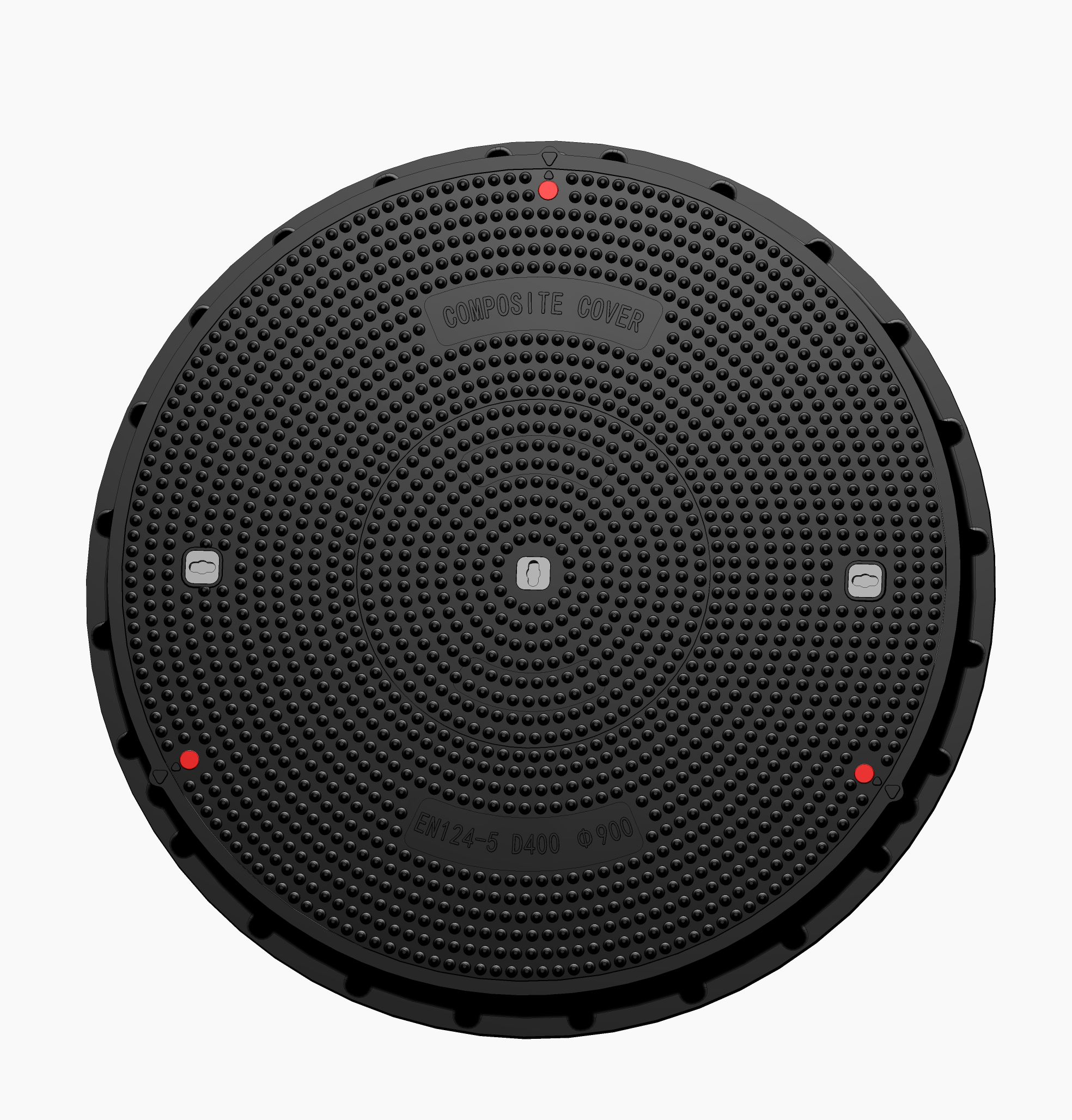

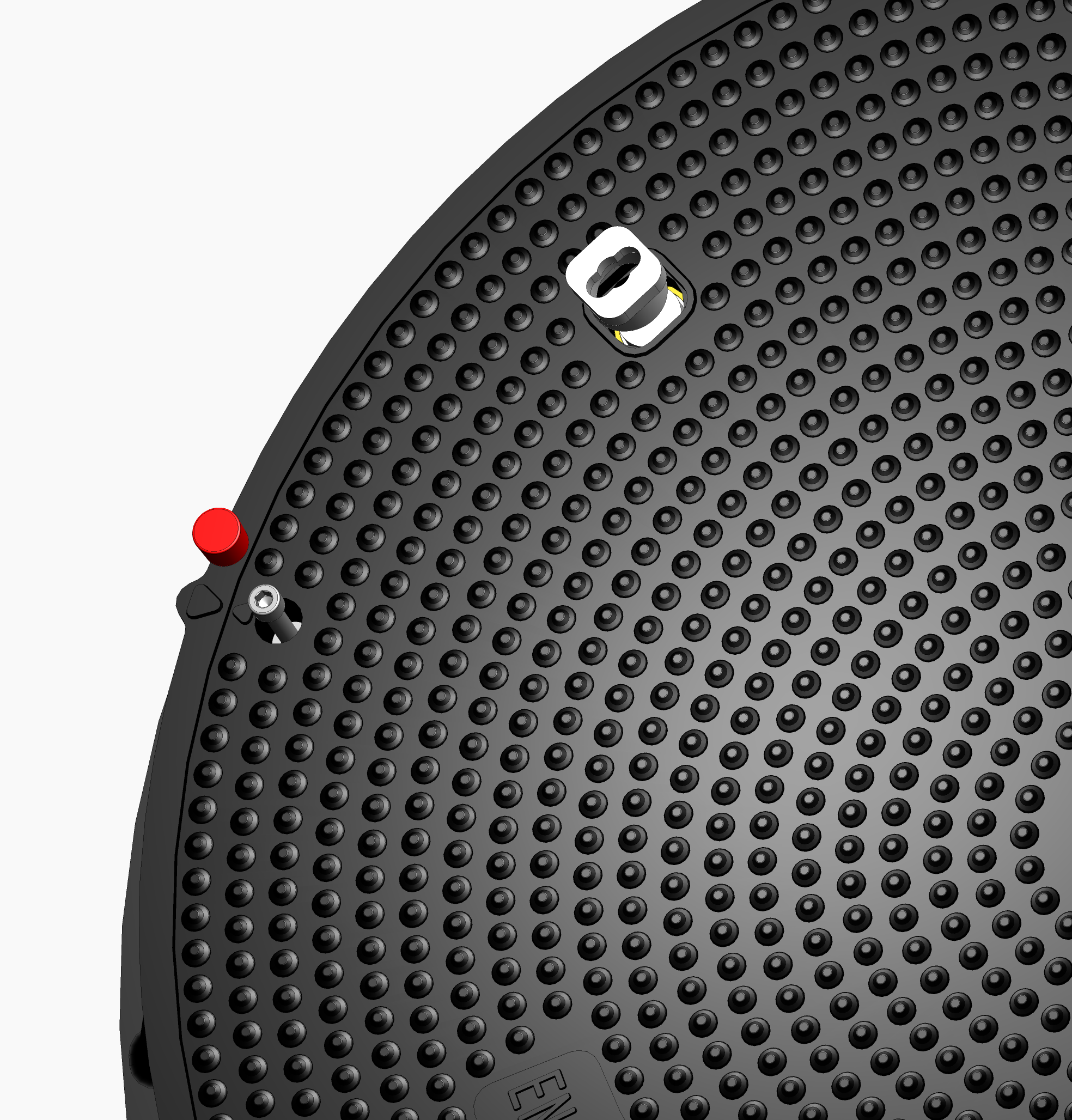

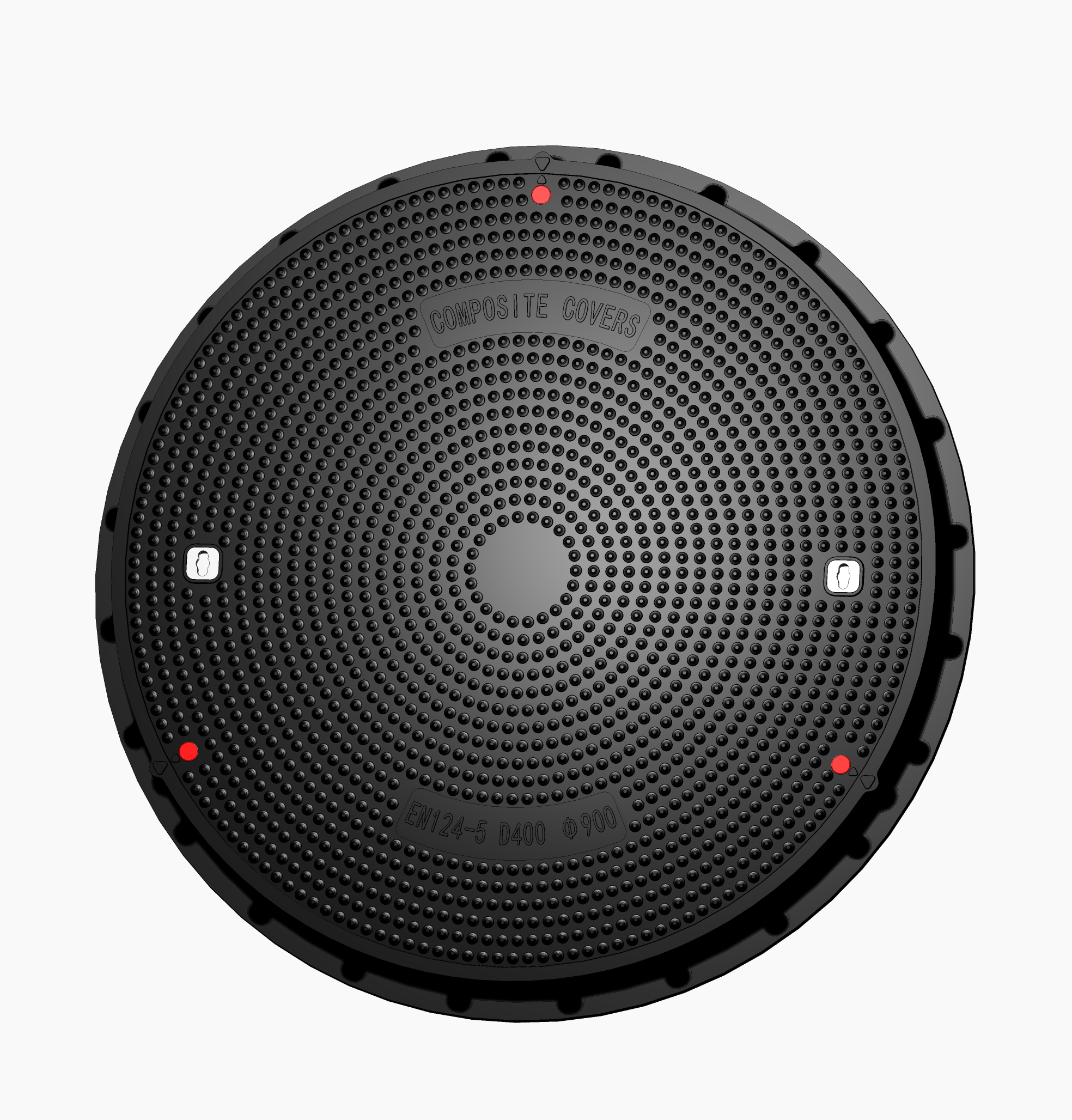

900mm D400Round Cover

Large-diameter round composite cover for fuel station forecourt utility access and tanker delivery areas. D400-rated for all heavy vehicle traffic. Standard watertight frame seal.

Ø900

Clear Opening

D400

Load Class

SMC

Material

▶
EN124 D400 certified — 40-tonne load rating for tanker delivery approach zones
▶
Non-conductive — Safe for installation in all forecourt fuel vapour areas
▶
Anti-slip moulded surface — Wet forecourt and road rated
▶
Zero scrap value — No theft risk at unattended fuel stations
▶
Lightweight vs. iron — Easier maintenance access by forecourt technicians

Request Quote → Full Specs ↓

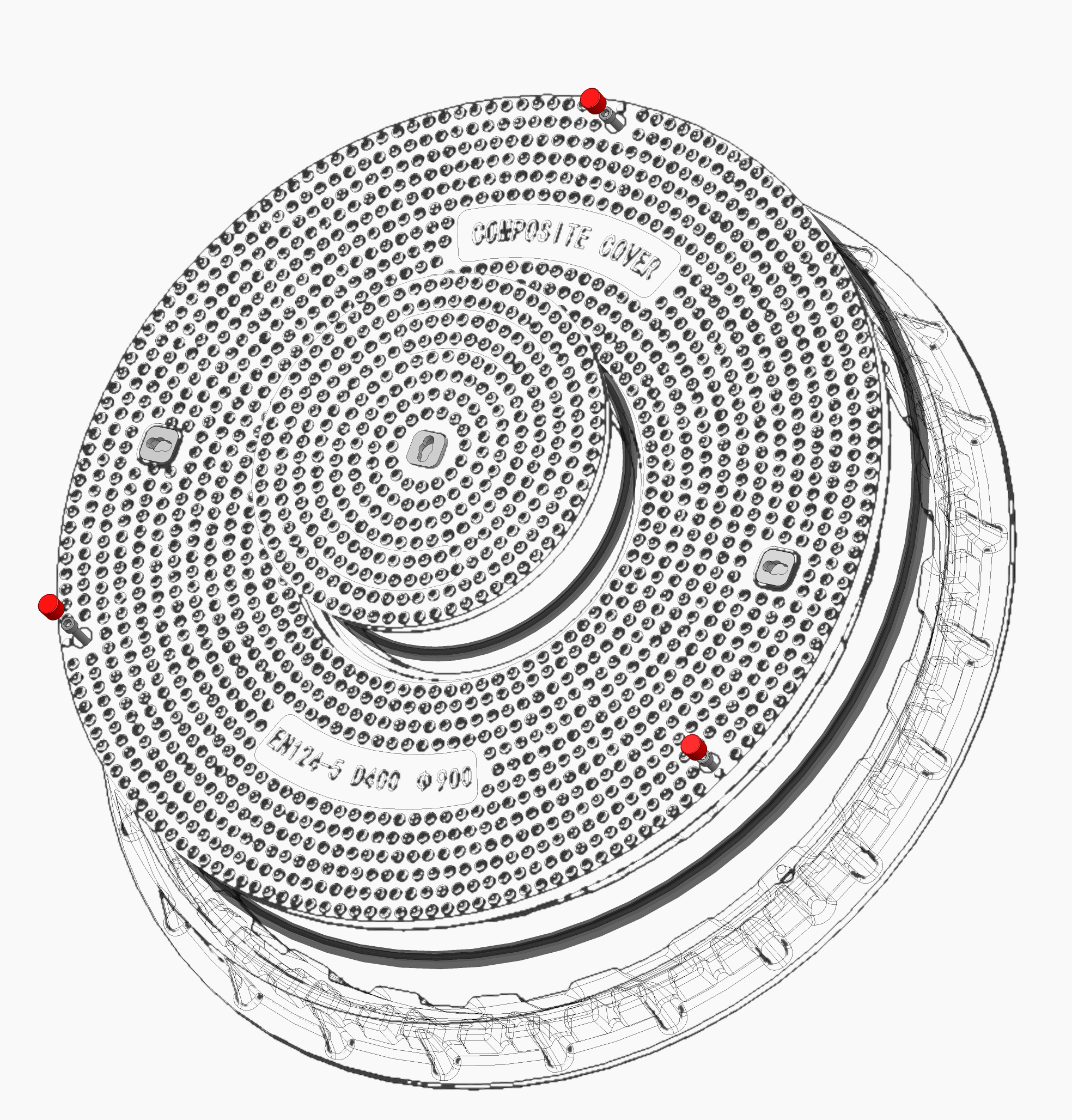

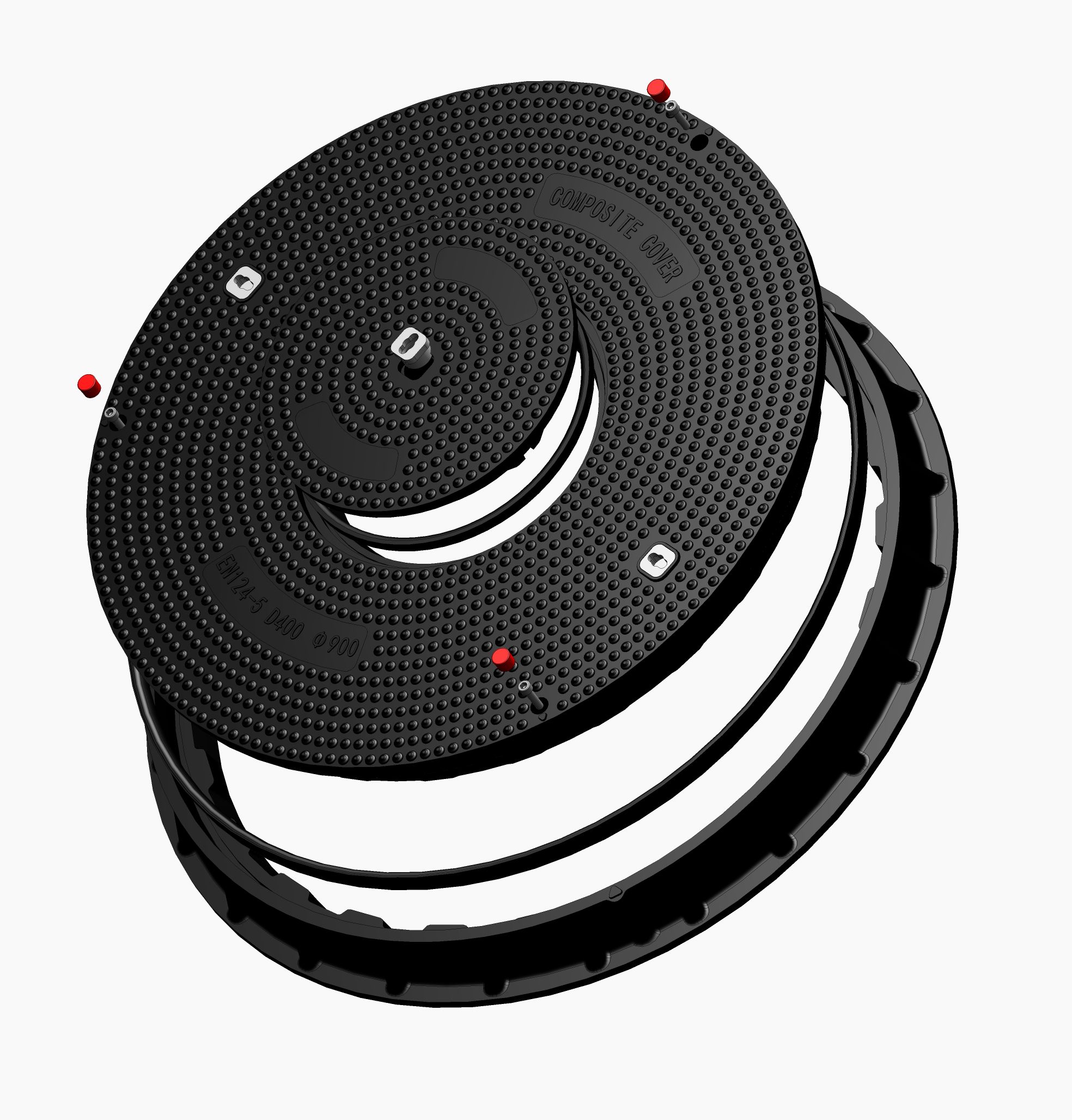

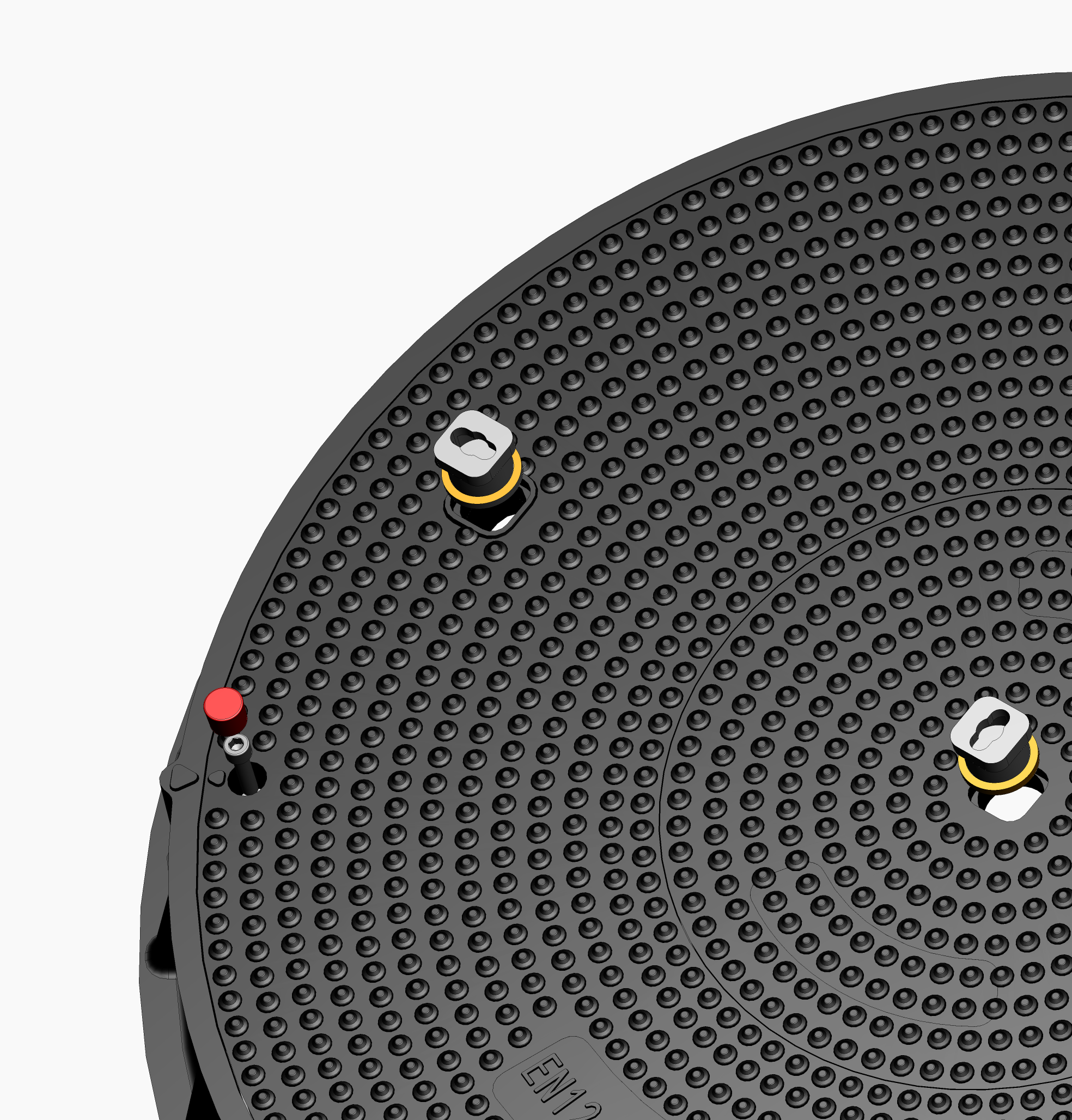

900mm DIP D400 Double Inspection Port Cover

Dual Port

[ Replace with product photo ]

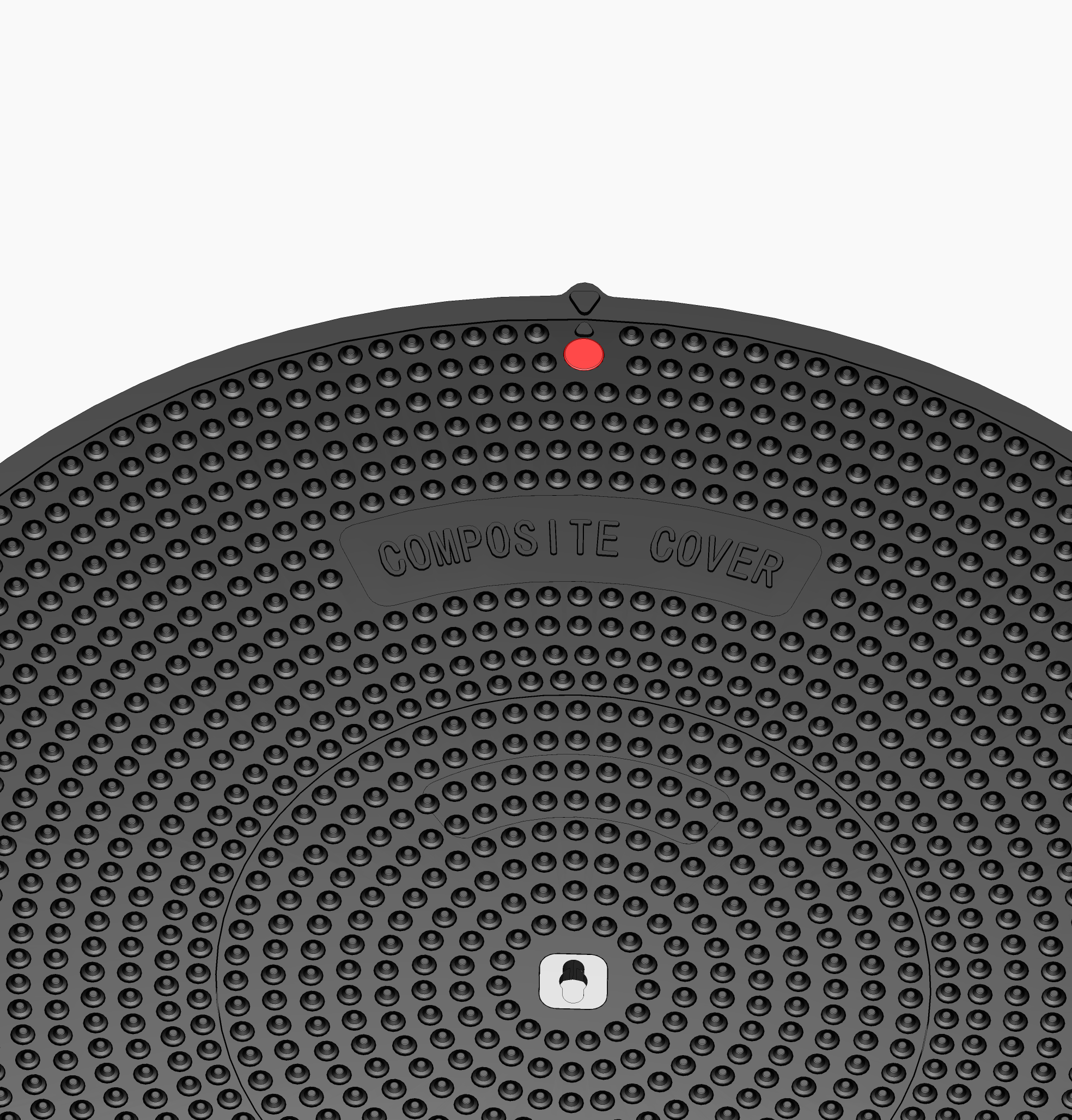

900mm DIP D400Double Inspection Port

Specialist cover with two independent inspection ports, allowing simultaneous or sequential access to two separate systems within a single sump — without removing the main cover.

Ø900

Clear Opening

2×Port

Inspection Holes

D400

Load Class

▶
Two independent inspection ports — Access submersible pump and vapour recovery independently
▶
Each port independently sealed — Maintains IP68 integrity when one port is open
▶
Reduces maintenance downtime — No need to remove full cover for routine inspections
▶
Non-conductive SMC — Safe for all fuel vapour environments
▶
Suitable for Stage-2 vapour recovery — Dual access required by modern VR system servicing

Request Quote → Full Specs ↓

Small Bore

[ Replace with product photo ]

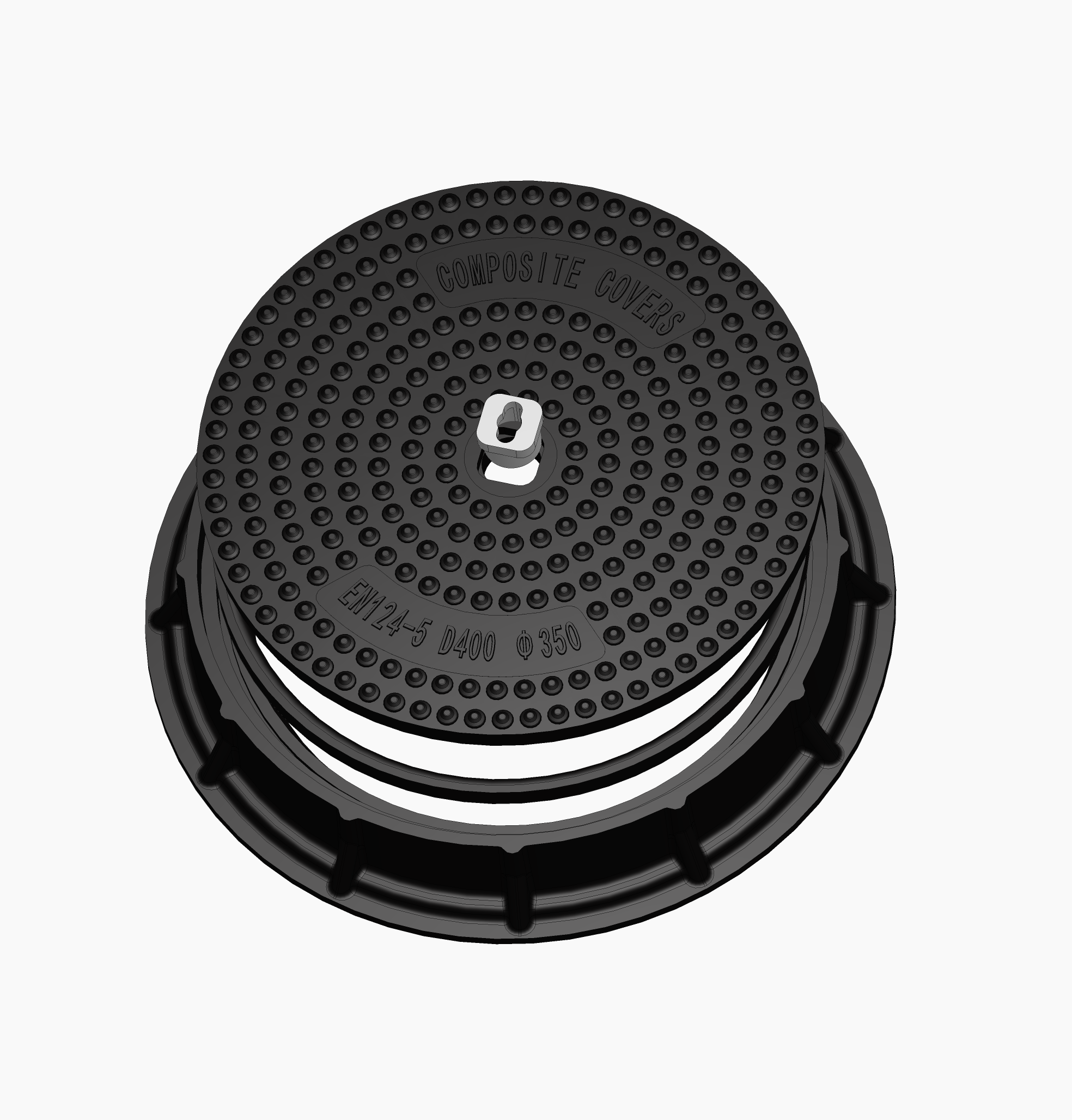

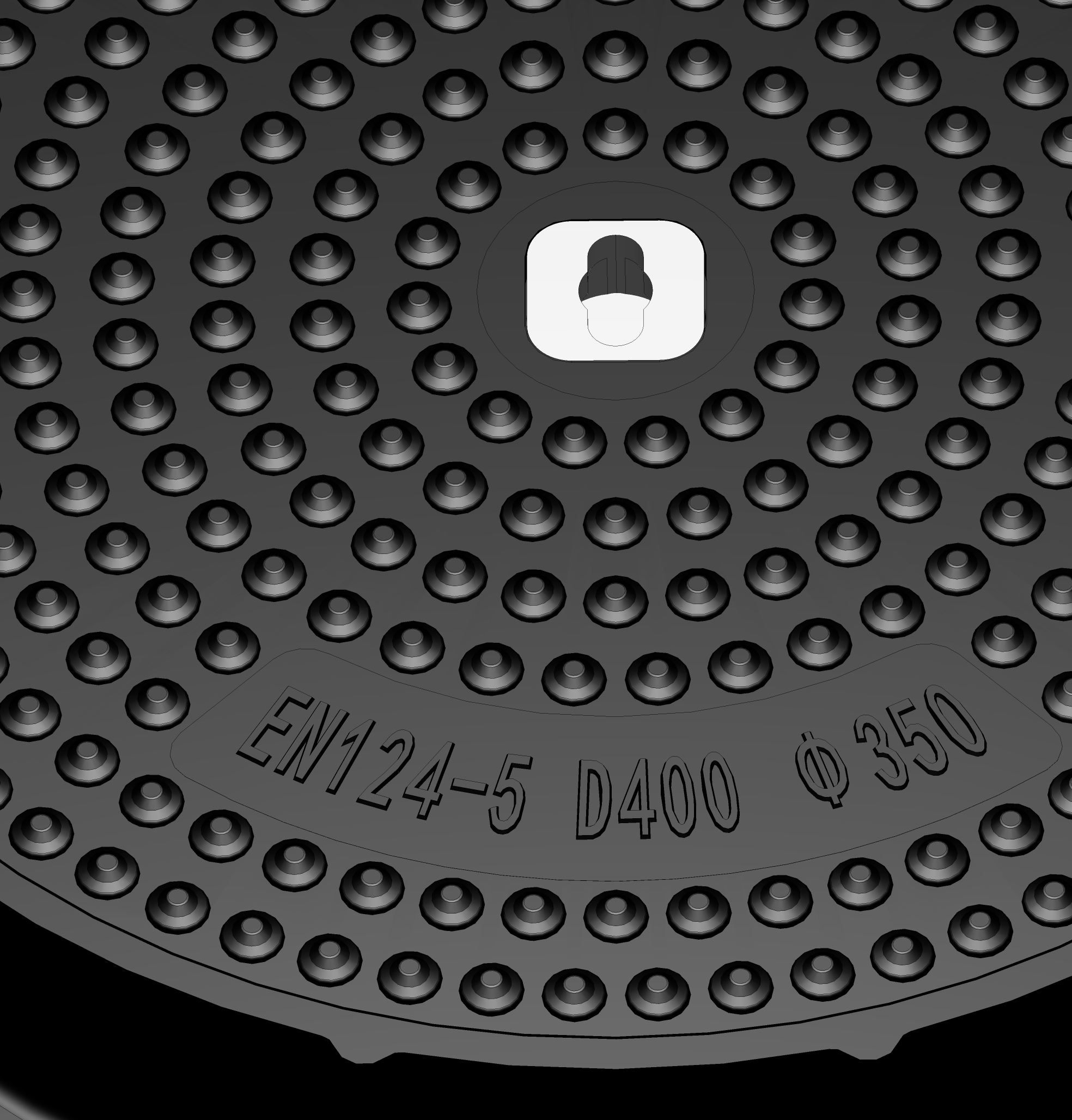

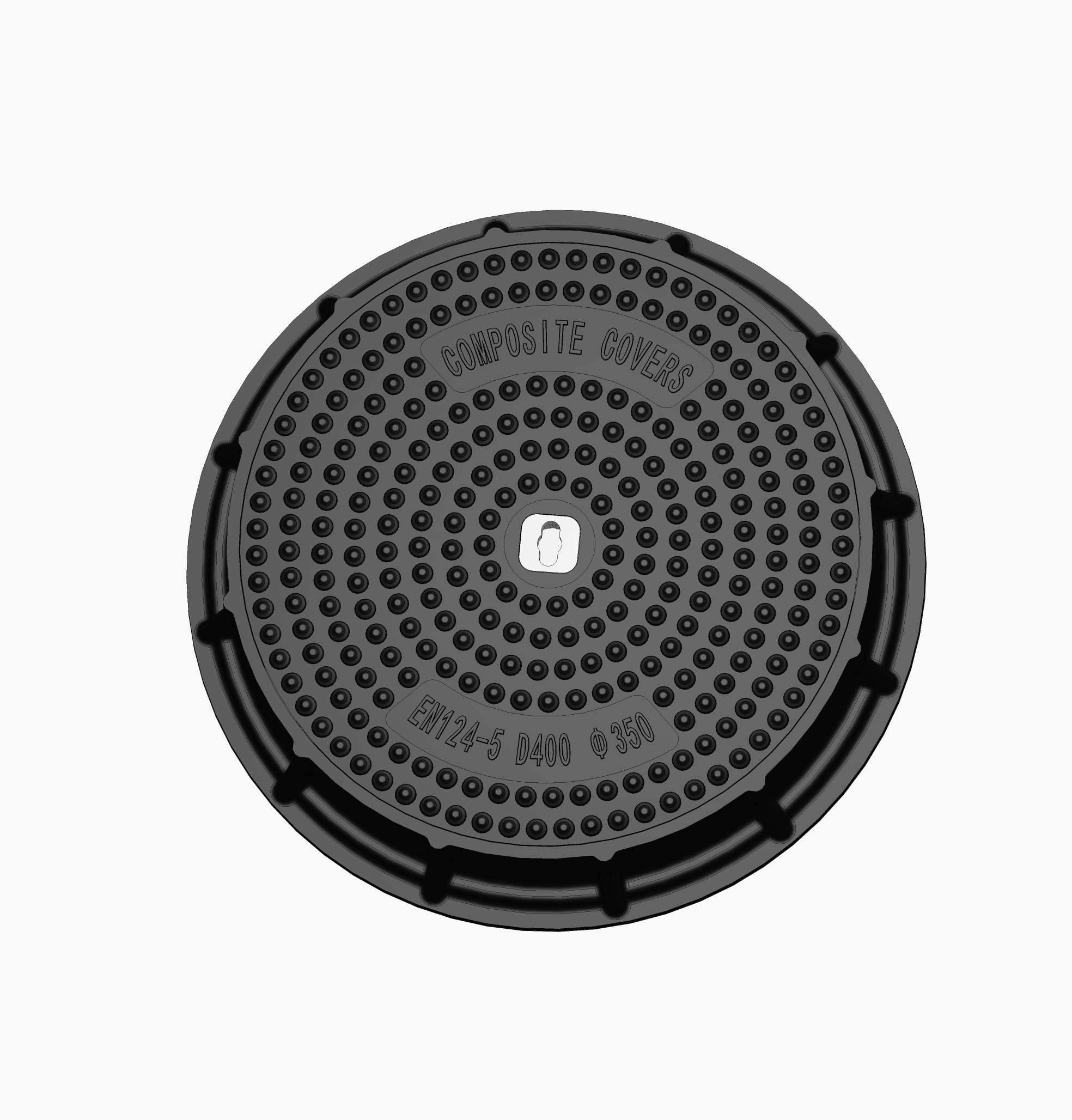

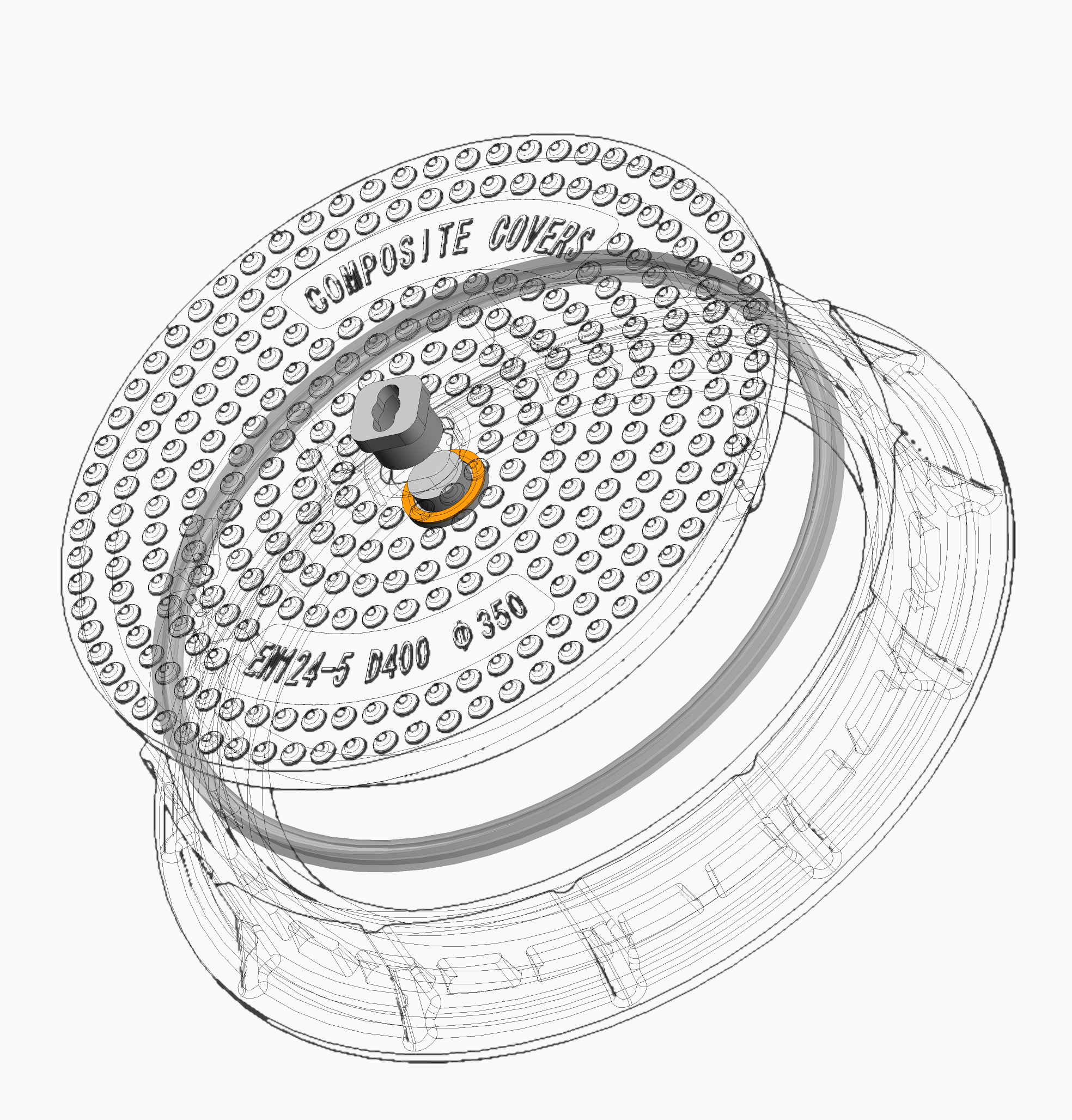

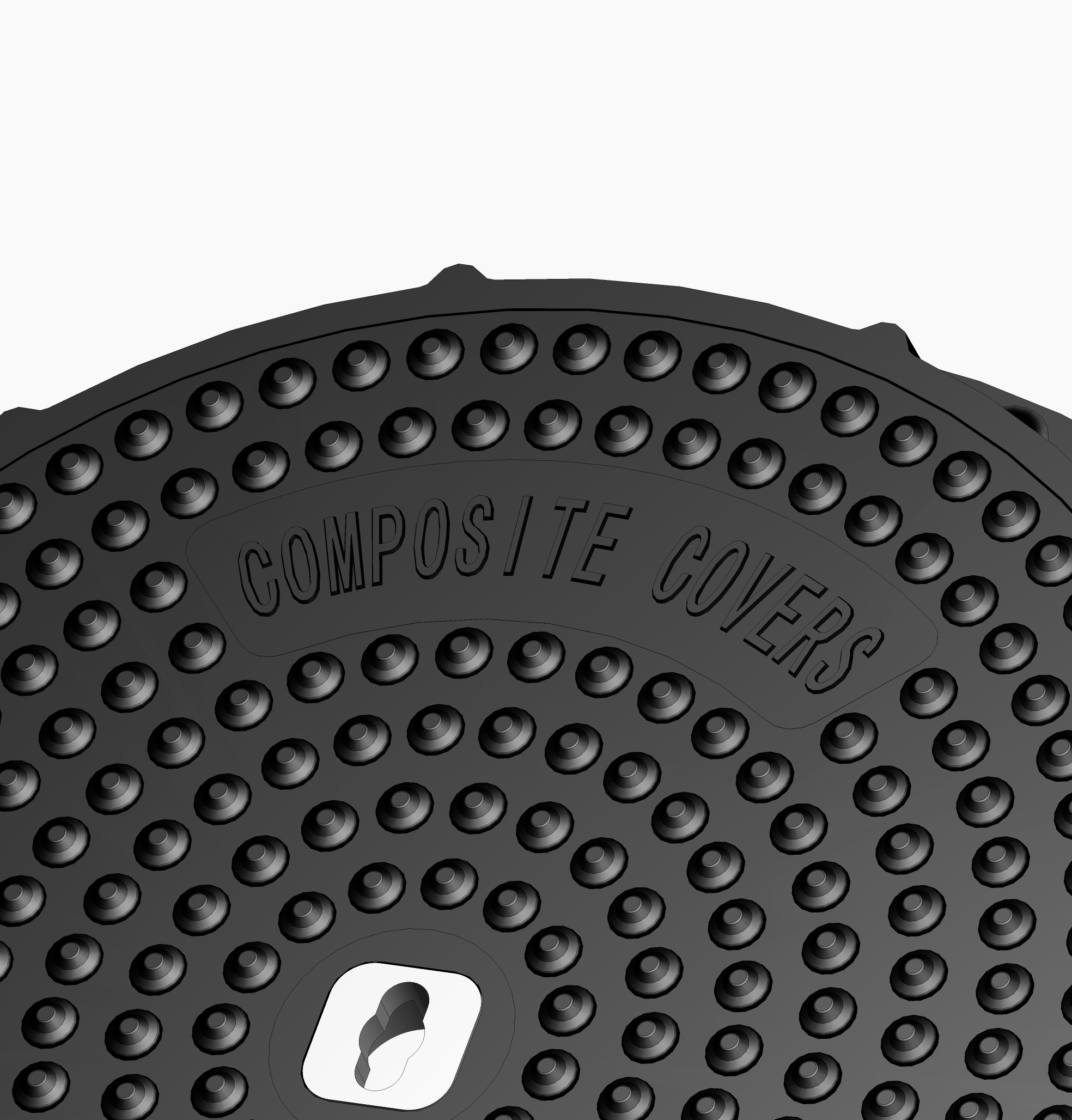

350mm D400Round Cover

Small-diameter D400 composite cover for individual sensor access, vent points, and small utility connections within the fuel station forecourt. Full D400 load rating despite compact size.

Ø350

Clear Opening

D400

Load Class

SMC

Material

▶
Compact D400 rating — Full 40-tonne load capacity in a small footprint for tight forecourt layouts
▶
Sensor and vent access — Sized for leak detection sensor access, STP vent connections, and interstitial monitoring
▶
Non-conductive — Safe near fuel vapour and electrical equipment
▶
Lightweight, easy to handle — Minimal disruption during routine sensor servicing
▶
Matches full-size covers — Same material, colour, and surface finish as other M&C fuel station covers

Request Quote → Full Specs ↓

Quick Reference

All Models — Side by Side

A full comparison of all four fuel station cover models. For detailed specifications and test reports, request a quote.

Model	Shape	Size	Load Class	Watertight	Inspection Port	Lock Option	Primary Use
900×900 D400	Square	900×900mm	EN124 D400	✓ IP68	Optional (1×)	✓	Sump cover, tanker fill point
900mm D400	Round	Ø900mm	EN124 D400	✓	—	✓	Forecourt utility, tanker zone
900 DIP D400	Round	Ø900mm	EN124 D400	✓ IP68	✓ Dual (2×)	✓	Multi-system sump, VR servicing
350mm D400	Round	Ø350mm	EN124 D400	✓	—	Optional	Sensor access, vent points

Where Each Cover Is Used

Fuel Station Installation Zones

Each position in a fuel station forecourt has specific load and access requirements. Our four-model range covers every zone.

Tanker Delivery Area

High-load zone where fuel tankers approach and connect to underground storage. Requires D400 rating for repeated 40-tonne axle loads.

900×900 D400 900mm D400

🔧

Underground Sump Access

Primary access to fuel containment sumps housing submersible pumps, vapour recovery systems, and leak detection equipment.

900×900 D400 900 DIP D400

📡

Sensor & Monitoring Access

Small access points for interstitial leak detection sensors, STP vent connections, and electronic monitoring systems embedded in the forecourt slab.

350mm D400

Material Advantage

Why Petroleum Operators
Specify SMC Composite

In fuel station environments, material choice is a safety and operational decision — not just a procurement one.

Non-Conductive — No Spark Risk

Metal covers can generate sparks if struck by tools or vehicle components in fuel vapour atmospheres. SMC composite is electrically non-conductive by material — this risk is eliminated by design, not by procedure or warning signage.

Permanent Watertight Integrity

Fuel containment regulations require sumps to remain sealed against surface water ingress. Our EPDM gasket system maintains IP68 integrity throughout the cover's service life — unlike metal covers whose sealing surfaces degrade from corrosion.

Fuel & Chemical Resistant

Petrol, diesel, and forecourt cleaning chemicals accelerate corrosion in ferrous metal covers, eventually compromising both seal and structural integrity. SMC composite is chemically inert to all standard petroleum products.

Self-Manufactured SMC — Full Quality Control

We produce our own SMC compound in-house. This means we control the formula — fibre content, resin chemistry, and filler — optimised specifically for fuel station load and chemical conditions. No third-party material variability.

EN124D400 · European Standard

PetroChinaApproved Supplier

SinopecApproved Supplier

ISO 9001Quality Management

SGS3rd Party Test Reports

Common Questions

Frequently Asked Questions

For most fuel containment sumps, the 900×900 D400 square cover is the standard specification. If your sump contains multiple systems requiring independent access (e.g. submersible pump and vapour recovery), the 900 DIP D400 with dual inspection ports eliminates the need to remove the full cover during routine maintenance. For sensor and monitoring access points, the 350mm D400 is appropriate. If you have project drawings, send them to us and we'll advise the right model for each position.

DIP stands for Double Inspection Port. The cover has two independently sealed inspection holes (ports), allowing access to two separate systems within the sump without removing the main cover. Each port has its own sealed lid that maintains the IP68 watertight rating when closed. This is particularly useful for sumps containing both a submersible pump and a stage-2 vapour recovery connection.

Yes. We are an approved supplier to both PetroChina and Sinopec station construction and refurbishment programmes. We can provide verification documentation on request. We also supply OEM-branded covers with operator logos moulded into the surface for branded station builds. Contact us with your project details and we will provide the relevant qualification documents.

Yes. Logos and text can be moulded directly into the anti-slip surface pattern. We supply branded covers for major oil company programmes. Minimum quantities apply for custom tooling. Provide your artwork and programme volume when requesting a quote and we will advise on feasibility and pricing.

Lead times depend on order volume, specification, and whether custom OEM marking is required. Standard covers for small and medium projects are typically available faster than custom tooling orders. Contact us with your project timeline and required quantities and we will provide a specific lead time with your quotation.

Get Pricing

Request a Quote — Fuel Station Series

Tell us your project scope and which models you need. We'll respond within 24 hours with pricing, lead time, and any required certification documentation.

✉️info@mcovers.com 💬WhatsApp — Fast Reply

✓ Response within 24 hours
✓ PetroChina & Sinopec approved — docs available
✓ EN124 D400 test reports on request
✓ OEM branding available
✓ Free sample for qualified buyers
